Pumps for carbon dioxide (CO2)

A wide range of applications for carbon dioxide (CO2)

Carbon dioxide (CO₂) is a colourless, odourless gas that plays a crucial role in the global carbon cycle and is used in numerous industrial applications. For example, CO2 is used in the chemical industry as a raw material for the production of methanol, urea, organic acids and other chemical products. Furthermore, CO2 is used in the food industry, for instance in beverages, to inhibit the growth of microorganisms or for decaffeination.

Thanks to its excellent thermodynamic properties, CO₂ is also used as a refrigerant in industry, commerce and automotive engineering. At the same time, the avoidance, reuse, storage and transport of CO₂ within the framework of Capture, Utilisation and Storage (CCUS) concepts are becoming increasingly important.

Offshore oil drilling platform and supply vessel at sunset over calm ocean waters, aerial view.

Interesting facts about CO2

Physical properties of CO2

  • Sublimation point: –78.5 °C at 1 bar
  • Critical point: 31.1 °C at 73.8 bar
  • In industrial applications, CO₂ is used in both its liquid and supercritical states.

CO₂ in refrigeration and CCUS applications

CO₂ is becoming increasingly important as a natural refrigerant and for Carbon Capture, Utilisation and Storage (CCUS). Find out more about its properties, areas of application and technical requirements.

Download the white paper

Our references

CO₂-based supermarket refrigeration

In high-pressure CO₂ systems for supermarket refrigeration, pressure resistance, cavitation resistance and absolute leak-tightness are particularly crucial. HERMETIC meets these requirements with seal-less canned motor pumps, ensuring safe and long-lasting operation even under demanding operating conditions.

CO₂-based supermarket refrigeration

Application: CO2

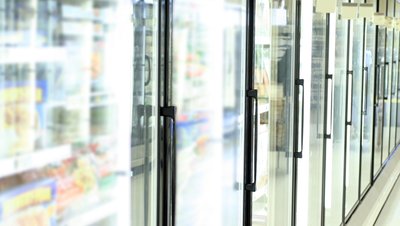

Row of glass-door refrigeration units in a supermarket, stocked with frozen food products.

Requirement

Medium:CO2
Delivery rate:4 m3/h
Pumping head:30 m
Operating temperature: –10 °C
Advantages: Leckagefrei, langlebig

Hermetic Solutions

Pump:CAMH 2/4
Motor:AGX 3.0
Pump type:Dichtungslose Spaltrohrmotorpumpe, in mehrstufiger Ausführung
Ex protection: Ohne Anforderung
Speciality: Hohe Fördermengen, Ex-Schutz
Optional: Beste Wirkungsgrade dank Frequenzbetrieb
To the application report

Carbon Capture and Storage (CCS)

In Carbon Capture and Storage (CCS), captured CO₂ is liquefied after processing, stored temporarily and prepared for transport. This requires pumping solutions that ensure leak-free and reliable operation even at low temperatures, high vapour pressures and high flow rates.

Carbon Capture and Storage (CCS)

Application: CO2

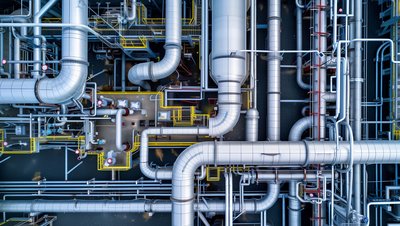

Aerial view of a large industrial CO2 plant with complex silver insulated pipelines, yellow walkways, and red valves.

Requirement

Medium:CO2
Delivery rate:400 m3/h
Pumping head:112 m
Operating temperature: –30,6 °C
Advantages: Leckagefrei, langlebig

Hermetic Solutions

Pump:CAMFTVm 83/3
Motor:N85z-4 C2
Pump type:Dichtungslose Spaltrohrmotorpumpe, in mehrstufiger Ausführung, vertikal
Ex protection: Ohne Anforderung
Speciality: Hohe Fördermengen
Optional: Vertikale Aufstellung für hohe Dampfdrücke und optimierte Entgasung
More on Carbon Capture and Storage

Customisations

Can’t find your application here?

We work with you to develop a suitable pumping solution for your specific process requirements. Thanks to our many years of experience in handling critical media, we can also produce bespoke designs and specialised solutions.

Make an enquiry now

Get in touch with our experts

Are you planning a CO₂ application, or do you have any questions about conveying technology, design or possible applications? Please contact our team of experts. We’d be happy to advise you.
