Pumps for ammonia (NH3)

Specific requirements regarding leak-tightness and operational safety

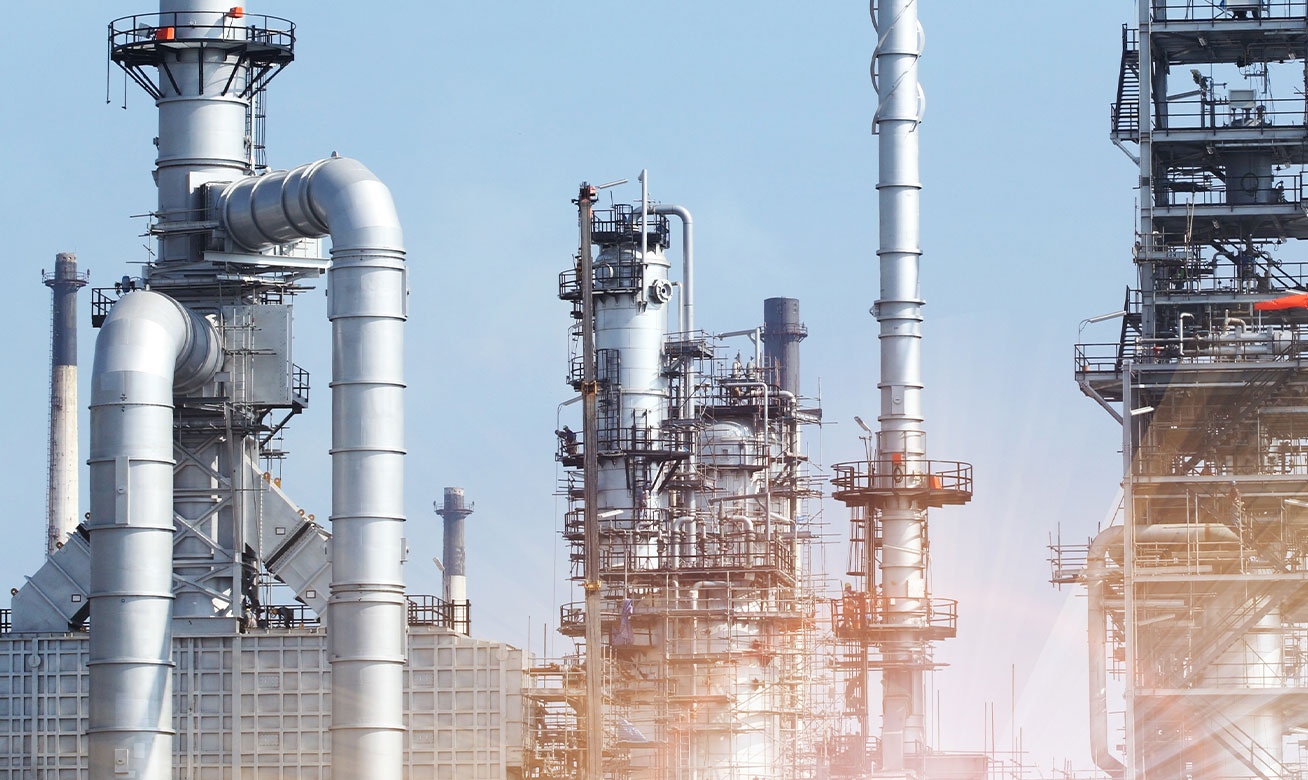

Ammonia (NH₃) is used in numerous industrial applications, including as a refrigerant, process medium, intermediate product or component of ammonia mixtures. Owing to its excellent thermodynamic properties, ammonia has become particularly well established in industrial refrigeration technology.

At the same time, the medium places high demands on leak-tightness, material selection and operational safety. Ammonia is toxic, harmful to health in higher concentrations and can corrode certain materials. Safe, hermetically sealed pump systems are therefore required for its transfer – particularly at low temperatures and in applications involving changing states of matter.

A tiny seedling grows from a moss-covered forest floor, bathed in dappled sunlight among tall trees.

Interesting facts about ammonia

Temperature range of liquid ammonia

–77 °C to +130 °C

Everything you need to know about ammonia

Why is ammonia one of the most important natural refrigerants? This white paper provides technical background information, explains its areas of application and offers practical insights for planning and operation.

Download the white paper

Our references

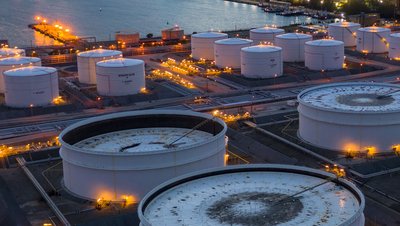

Production of ammonia (ammonia synthesis)

With an annual global production of around 180 million tonnes (as of 2021), ammonia is one of the most important basic chemicals in industry. It is produced from nitrogen and hydrogen, usually using the Haber-Bosch process.

HERMETIC canned motor pumps are used in the synthesis process, amongst other things, to remove condensed ammonia and to transfer liquid ammonia to storage and holding tanks.

Production of ammonia (ammonia synthesis)

Application: Ammonia / Ammonia synthesis

A tiny sapling growing from a moss-covered forest floor, illuminated by dappled sunlight among tall trees.

Requirement

Medium:Ammonia (NH₃)
Delivery rate:15 m³/h
Pumping head:45 m
Operating temperature: 40 °C
Advantages: Leak-free, durable

Hermetic Solutions

Pump:CNF 65-40-200
Motor:N34L-2
Pump type:Single-stage canned motor pump
Ex protection: Yes
Speciality: High flow rates, explosion protection
To the application report

Cooling during malt separation

Ammonia (NH₃) has established itself as the standard refrigerant in industrial refrigeration technology due to its excellent thermodynamic properties. In breweries, it is used, amongst other things, for cooling during malt separation. Furthermore, ammonia is used in central refrigeration systems in cold stores and deep-freeze facilities, abattoirs, chemical production plants and ice rinks.

Basic chemistry – Production of ammonia / Ammonia synthesis

application: ammonia

Young tree seedling growing from mossy forest floor, surrounded by sunlit woodland with tall trees in background.

Requirement

Medium:Ammonia / R717
Delivery rate:12 m³/h
Pumping head:40 m
Operating temperature: –20 °C
Advantages: Leak-free, durable

Hermetic Solutions

Pump:CNF40-200
Motor:AGX4.5 (4.5 kW)
Pump type:Single-stage canned motor pump
Ex protection: Yes
Speciality: High flow rates

Customisations

Can’t find your application here?

We’ll work with you to develop a suitable pump solution for your specific process requirements. Thanks to our many years of experience in handling critical media, we can also produce bespoke designs and specialised solutions.

Make an enquiry now

Get in touch with our experts

Are you planning to use ammonia, or do you have any questions about conveying technology, design or possible applications? Please contact our team of experts. We’d be happy to advise you.
